85 Series Folding Doors

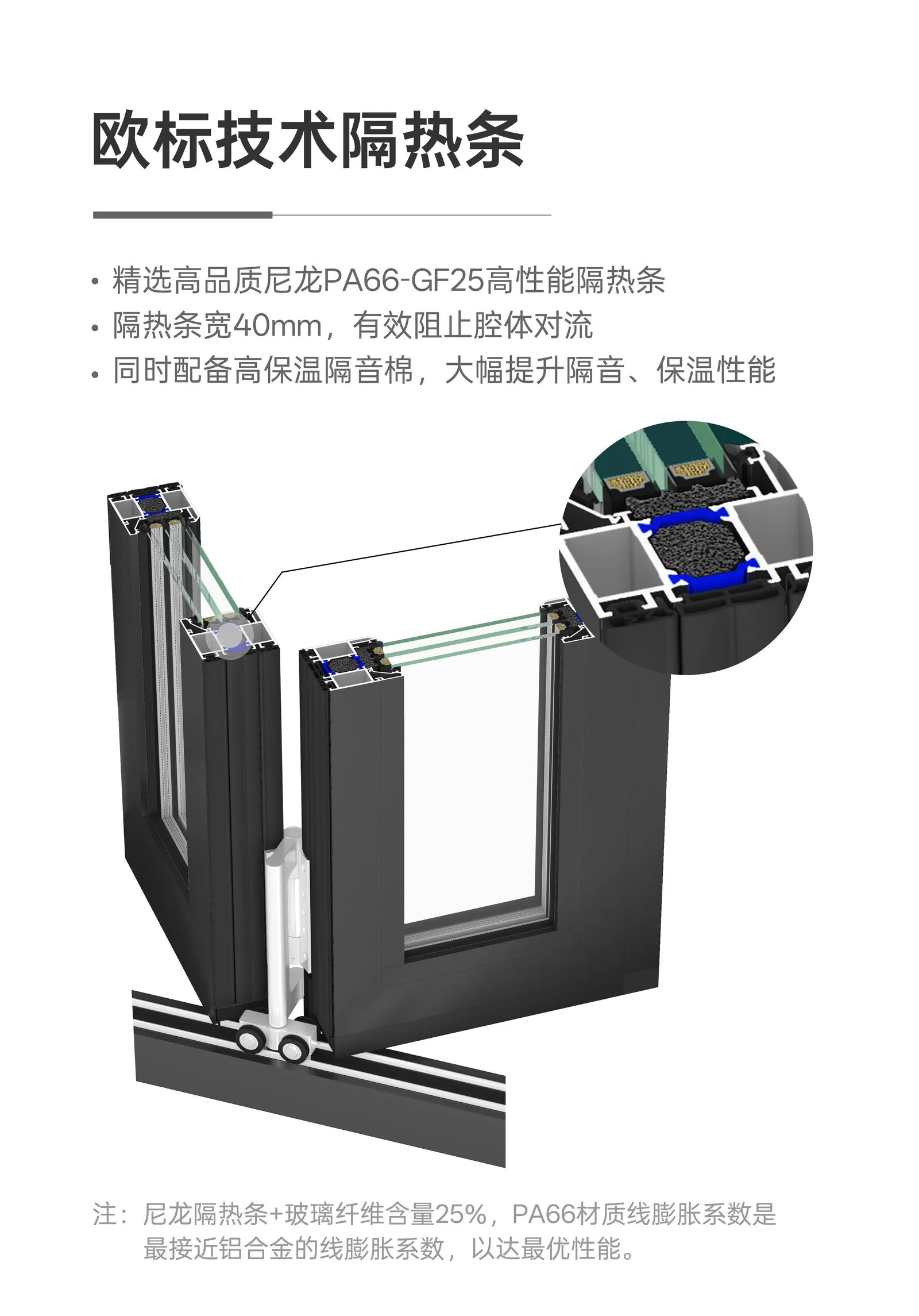

The 85 Series Folding Door is a multi-panel aluminium door system that folds and stacks to one or both sides, effectively opening an entire wall for indoor-outdoor living. The 2.2mm 6060-T66 aluminium wall is heavier than the 1.8mm used on the window platform because the door panels span taller openings, while the 24mm multi-chamber arched thermal break and 24-25 / 29-30 / 39-40mm glazing pocket keep the Uf between 1.8 and 2.0 W/(m²·K) without giving up glazing flexibility. The butyl-tape panel joints and dedicated EPDM seals around the perimeter preserve Class 4 air tightness and Class 3 water tightness even when the door is in daily use. CMI (American) handles and folding-door hardware are standard, with the multi-point anti-pry locking system shared across the door platform. Suitable for patios, terraces, restaurant fronts and any opening that benefits from a fully retractable door. Send us the opening size, number of panels and stacking direction and we will confirm the configuration and lead time.
