75 Series Tilt & Turn Windows
European dual-action opening from a single handle — gentle tilt for ventilation, full turn for access.
Overview
75 Series Tilt & Turn Windows
The 75 Series tilt and turn window is engineered around the European dual-action handle — tilt the sash inwards for draught-free ventilation, or turn it fully open for cleaning and maximum airflow. The 75mm frame depth, 1.8mm aluminium wall and 30mm multi-chamber thermal break work together to keep Uf between 1.4 and 1.8 W/(m²·K) without sacrificing the slim 28mm frame sightline. Siegenia concealed hardware and HOPPE handles come as standard, paired with AkzoNobel powder coating and EPDM co-extruded seals across a three-seal perimeter. Whether used in a single residential opening or stacked across a multi-storey façade, the 75 Series combines passive-house comfort with a clean, modern aesthetic. Send us your schedule — sizes, opening directions and finishes — and we will confirm the configuration and lead time for your project.
Key Features
What Makes It Work
- Dual Tilt-and-Turn Action
- 1.8mm Profile Wall — 6060-T66 Aluminium
- 30mm Multi-Chamber Arched Thermal Break
- 42 dB Sound Insulation
- Multi-Point Anti-Pry Locking
- Three-Seal EPDM Weather Stripping
Specifications
Technical Details

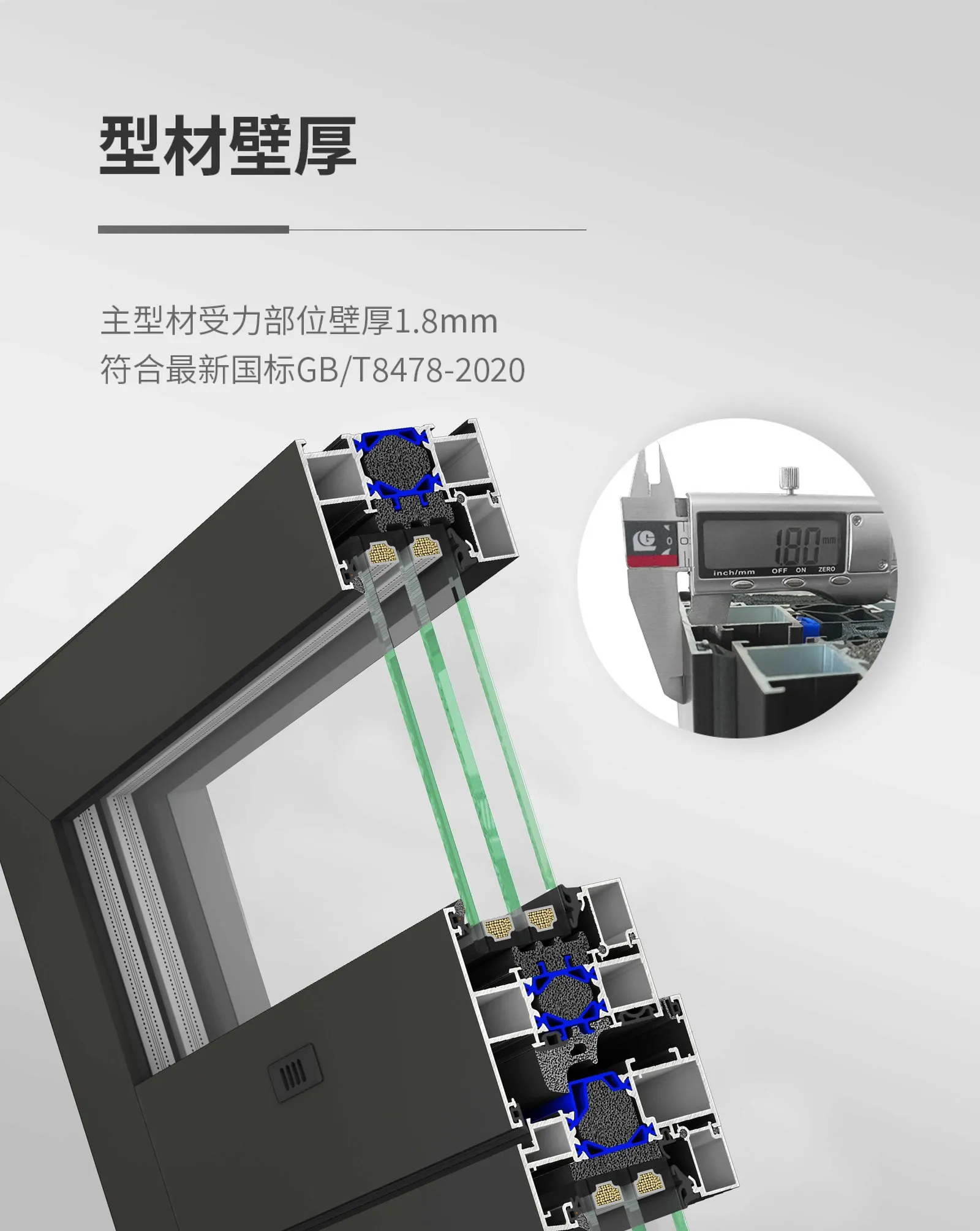

- Profile Wall
- 1.8mm
- Aluminium Grade
- 6060-T66 Ultra-Precision
- Manufacturing Standard
- GB/T 8478-2020
- Frame Depth
- 75mm
- Sash Depth
- 85mm
- Frame Sightline
- 28mm
- Sash Sightline
- 48mm
- Thermal Break
- 30mm Multi-Chamber Arched
- Glazing
- 24-25 / 29-30 / 39-40mm
- Wind Resistance
- Class 9
- Air Tightness
- Class 6
- Water Tightness
- Class 6
- Sound Insulation
- 42 dB
- Thermal Performance (Uf)
- 1.4–1.8 W/(m²·K)
- Handle
- HOPPE (German)
- Hardware
- Siegenia Concealed (German)
- Surface Finish
- AkzoNobel Powder Coating
- Sealing
- EPDM Co-Extruded, Three-Seal Perimeter
- Corner Assembly
- 45° Crimp + Glue Injection
Gallery
Product Details
Click any image to view it full size.
Applications
Where It Fits
- Residential
- Apartments
- Multi-Storey Buildings
- Modern Façades
