110 Series Passive House Windows
Passive House Institute certified — Uw 0.80 W/(m²·K), engineered for low-energy buildings.
Overview
110 Series Passive House Windows
The 110 Series is our Passive House Institute certified window, designed for low-energy, near-zero and Passive House standard buildings. Independently tested and registered as Component-ID 2472wi03 (valid until 31 December 2026), the system delivers a Uw of 0.80 W/(m²·K) — verified, not theoretical — alongside 37 dB sound insulation, Class 9 wind resistance and the wider glazing pocket (39-40mm or 49-50mm) that low-energy construction demands. The 110mm frame depth and 30mm multi-chamber thermal break are combined with concealed Siegenia hardware as standard, or Sobinco concealed hardware as the high-spec upgrade, plus EPDM seals across the three-seal perimeter. Suitable for residential, multi-storey and institutional projects targeting Passive House, LEED, BREEAM or other stringent low-energy certifications. Share your project brief and we will confirm the configuration, certification documentation and lead time.
Key Features
What Makes It Work
- Passive House Institute Certified (Component-ID 2472wi03)
- Uw 0.80 W/(m²·K) — Independently Verified

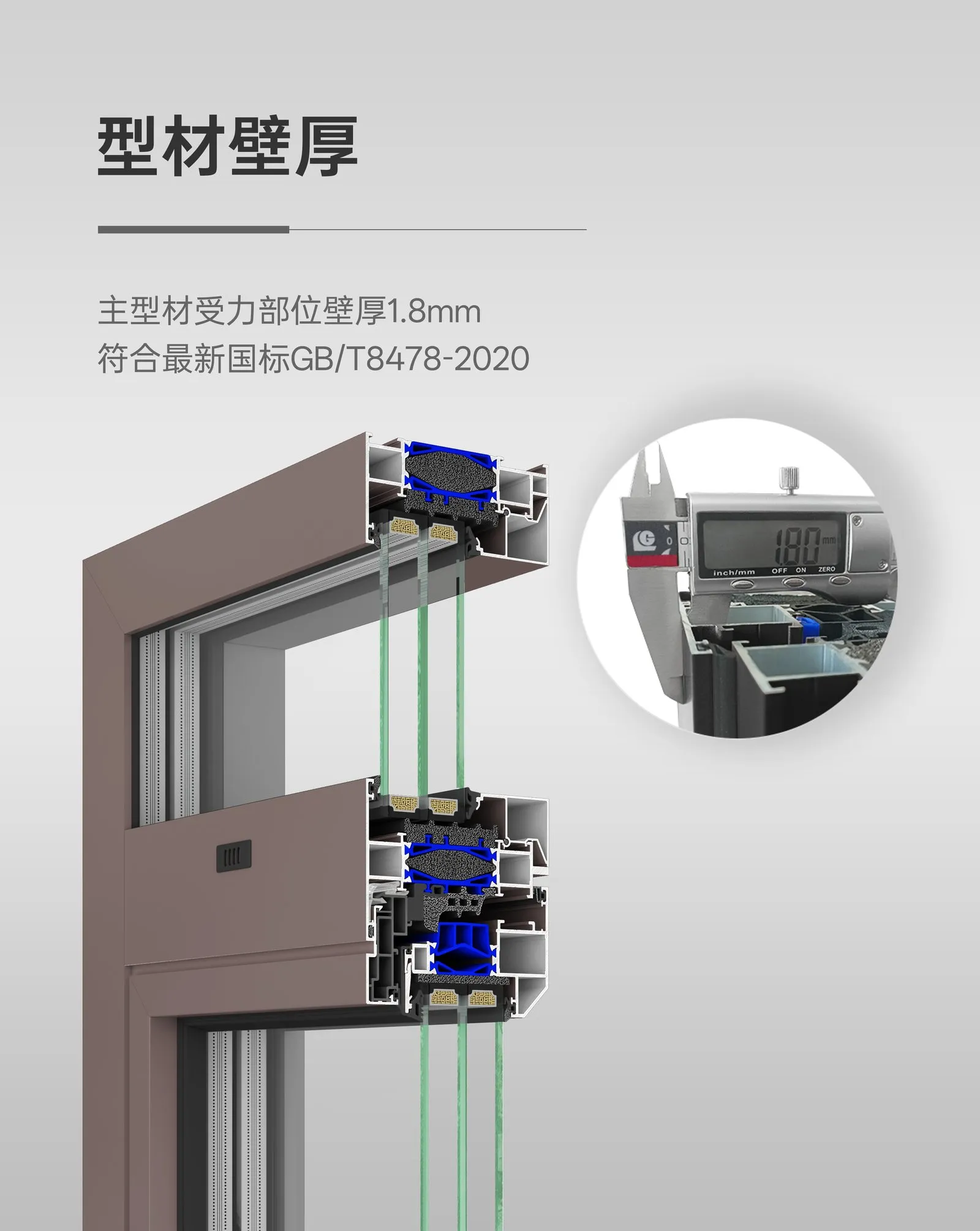

- 1.8mm Profile Wall — 6060-T66 Aluminium
- 49mm Triple-Glazed Option
- Siegenia / Sobinco Concealed Hardware
- Three-Seal EPDM Weather Stripping
Specifications
Technical Details
- Profile Wall
- 1.8mm
- Aluminium Grade
- 6060-T66 Ultra-Precision
- Manufacturing Standard
- GB/T 8478-2020
- Frame Depth
- 110mm
- Sash Depth
- 87mm
- Frame Sightline
- 28mm
- Mullion Sightline
- 28mm
- Sash Sightline
- 65.4mm
- Thermal Break
- 30mm Multi-Chamber Arched
- Glazing
- 39-40 / 49-50mm
- Wind Resistance
- Class 9
- Air Tightness
- Class 4
- Water Tightness
- Class 3
- Sound Insulation
- 37 dB
- Thermal Performance (Uf)
- 0.8–1.6 W/(m²·K)
- Passive House Certification
- Component-ID 2472wi03 (Uw 0.80, valid until 31.12.2026)
- Standard Hardware
- Siegenia Concealed (German)
- Upgrade Hardware
- Sobinco Concealed (Belgian)
- Surface Finish
- AkzoNobel Powder Coating
- Sealing
- EPDM, Three-Seal Perimeter
- Corner Assembly
- 45° Crimp + Glue Injection
Gallery
Product Details
Click any image to view it full size.
Applications
Where It Fits
- Passive House Projects
- Multi-Storey Residential
- Institutional Buildings
- Low-Energy Construction
