110 Series Integrated Screen Windows

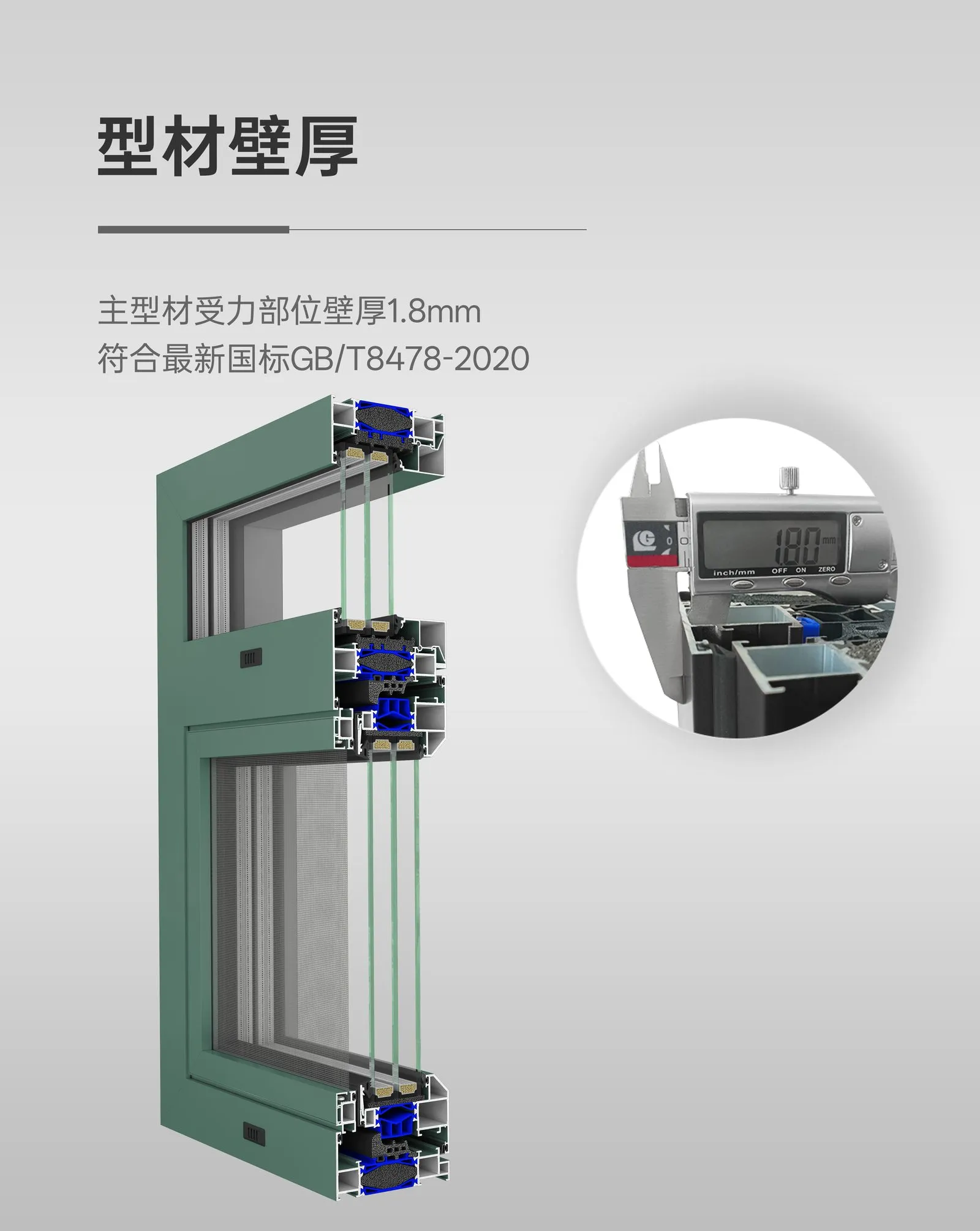

The 110 Series Integrated Screen Window combines a low-energy passive-grade casement with a factory-fitted retractable insect screen, sharing the same 110mm frame pocket so the two systems operate as a single unit rather than a retrofitted add-on. The 1.8mm 6060-T66 aluminium wall, 30mm multi-chamber thermal break and 39-40mm / 49-50mm triple-glazing pocket deliver a Uf between 1.0 and 1.6 W/(m²·K) alongside 37 dB sound insulation and Class 9 wind resistance. The integrated screen slides on concealed tracks and disappears inside the frame when not in use, leaving a clean sightline from the interior. Standard Roto (German) concealed hardware can be upgraded to Sobinco (Belgian) concealed hardware for premium specifications. Suitable for residential and light commercial projects where passive-grade thermal performance and insect protection are both required. Share your project brief and we will confirm the screen direction, configuration and lead time.
